| คุณสมบัติ | |
| มอเตอร์ | 3 KW-4P ,380V/50HZ/3phases |
| ความเร็วในการตัด | 12 รอบ/นาที |
| ขนาด | 81x76x86 ซม. |
| เหล็ก 45 kg/mm2 , เหล็กกลมSR24 (39 kg/mm2) | ตัดเหล็กสูงสุดขนาด 6-42 mm |
| เหล็ก 65 kg/mm2 , เหล็กข้ออ้อยSD50 (63 kg/mm2) | ตัดเหล็กสูงสุดขนาด 6-36 mm |
| น้ำหนักสุทธิ (kg) | 374 |

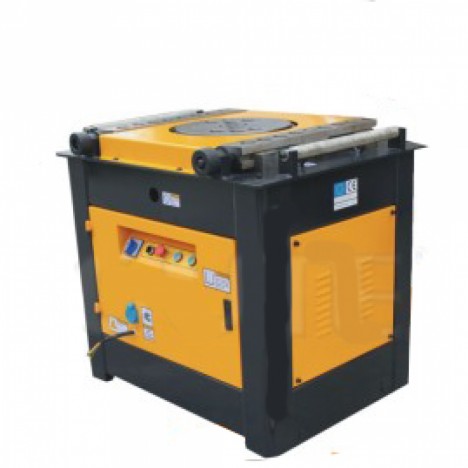

Rebar Bender Machine GW42D(Automatic)42mm
---MAIN FEATURE:
MOTOR TYPE: Automatic BRAKE MOTOR
GEAR BOX: CAST STEEL INSIDE GEAR: C45 STEEL
GEAR SHAFT: C45 STEEL WORKING DISK: C45 STEEL
STOP GAUGE: C45 STEEL PILE HEAD: CR 40 STEEL
EXTERNAL CASE: Q235
---PRODUCT DESCRIPTION
GW42D adopts the FULLY ENCLOSED GEAR BOX separated from the working disk for NO
DISTORTIONS even under the condition of heavy loads and NO OIL LEAKING while
Lifting the machine.
GEAR, GEAR SHAFT, WORKING DISK, STOP GAUGE, PILE HEAD and PILE HEADS are made of high
Quality ALLOY STEEL with proper HEAT TREATMENT(quenching/tempering/high
Frequency), and 3mm thick external case to ensure high performances also under
Heavy loads and LONG WORKING LIFE.
DUST PROOF BRAKE MOTOR and TWO LIMIT-SWITCH to ensure the accuracy of the bending
Angle also after stopping and restarting.
INSERT-PIN TYPE disk and MOVABLE SADDLES for a precise adjusting of the bending
Angle.
CE Certification(2006/42/EC-2006/95/EC)
เครื่องดัดเหล็กแบบออโตเมติก 3 สาย (Rebar Bender) GW42D-4 กำลังไฟ 380V
