| คุณสมบัติ | |
| Self-levelling range | ± 3° |
| Accuracy | ± 1,5 mm / 10 m |
| Working range without receiver Ø | 30 m* |
| Working range with receiver Ø | 400 m |
| Rotating speed (rpm) | 200, 400, 600 |
| Power supply | NiMH |
| Operating time | 20 h |
| Dust/water protection | IP 54 |
| Laser diode / class | 635 nm / 2 |
| Temperature range | -10°C to +45°C |
| Weight (instrument with battery) | 1.5 kg |

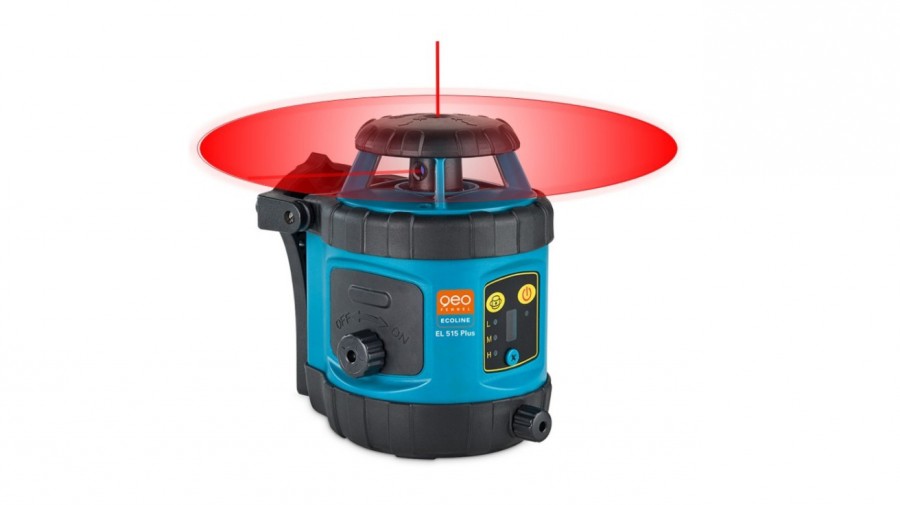

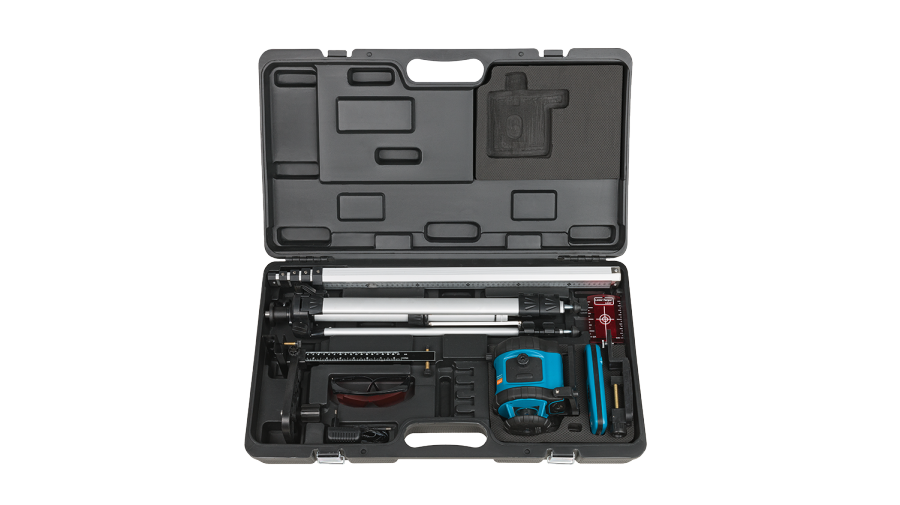

ชุดเลเซอร์หมุนรอบตัว Geo Fennel EL515 Plus Set (Germany) อุปกรณ์ 4 ชิ้น
Ready to use and fully equipped for many applications: Either the elevating tripod or the wall mount can be used, depending on the situation. Target
plate and laser glasses for improved visibility of the laser beam. Receiver and handy levelling staff for determining height differences. With
rechargeable battery and charger, and the option of operating the device with alkaline batteries
.
FEATURES
Instant self-levelling
Horizontal self-levelling rotating laser; vertical levelling with one footscrew
Automatic shut-off and audible alarm when out of self-levelling range
Variable rotating speed
Permanent 90° beam to zenith
Rechargeable NiMH batteries with intelligent charger
Integrated floor/wall mount with adjustment screw
