| คุณสมบัติ | |
| Cutter blade diameter | 118 mm |
| TCT Blade Diameter | 165 mm |
| Bore Diameter | 20 mm |
| Input Wattage | 1,300 w |
| No Load Speed | 2,600 – 6,400 rpm |
| Net weight | 5.1 kg |
เลื่อยราง เลื่อยเซาะร่องมีเนียม 5" MAKITA รุ่น CA5000xj
Makita recognise the rapid advances in many spheres of the construction industry and there are none moving faster than the interior décor, shop fitting and external aluminium cladding operations. New, lightweight decorative materials are being introduced constantly to make more appealing building interiors, faster completion of build and interior refurbishments and, better still, more accurate fascia finishes. Aluminium sandwich panel systems are high on this list of innovative materials, light, attractive and easy to style. But how do you work with them? How do you cut and bend them in the fast and accurate method designed to appeal to modern offices, hotels and schools and even domestic architecture?

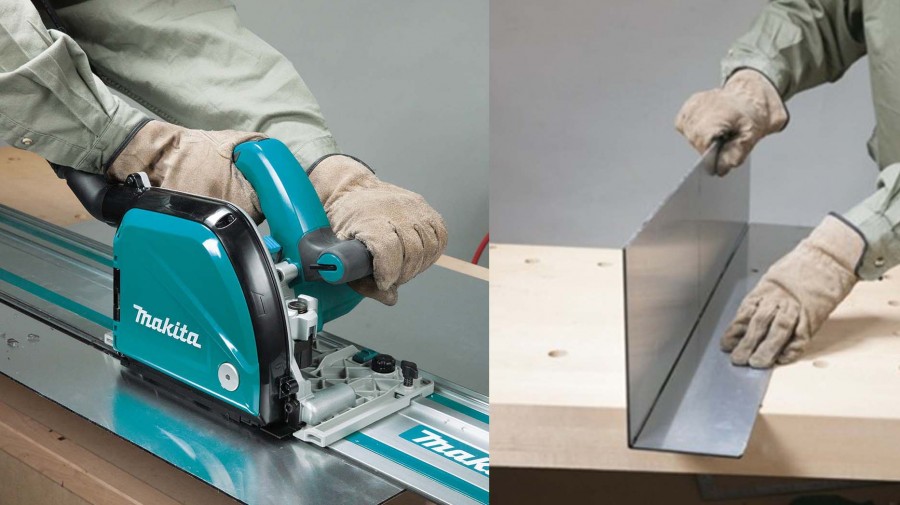

Makita has researched this new trend over recent years and worked with the panel manufactures and installers. The new Makita CA5000XJ aluminium groove cutter is the result of this close collaboration. Truly a machine designed to enhance the application of a material. This new high-tech saw precisely cuts a 90° V-shaped groove along the aluminium composite panel which enables the panel to be accurately folded around the groove.
Powered by a 1,300 watt motor, the new Makita CA5000XJ groove saw will run up to 6,400rpm, features the Soft Start system and constant speed control which is selected by a small dial on the motor body. The 118mm 6-tooth blade supplied with the saw is covered by a full housing. When the depth of groove has been set using the adjustment dial and the rigid base plate fitted to the guide rail, the operator pushes the motor body down in a plunge saw movement to bring the cutter blade into contact with the material. An optional profile blade is available to give a 135° groove for alternative folded shapes. Cutting capacity with the guide rail is 11mm.
Ideal for processing aluminium composite material
Cutter blade for 135 degrees V shaped groove as an option
User-friendly blade cover design for easy blade change
Two in one; Also can be used as a plunge cut circular saw.
Depth adjustment dial
Easy blade change
Main and auxiliary handles with elastomer soft grip
Compatible with Existing Makita Guide rails
Developed for cutting grooves in aluminium composite materials
Cutter blade for 90 degrees V shaped groove enables you
Ideal for processing aluminium composite material
Main and auxiliary handles with elastomer
1400mm ALUMINIUM GUIDE RAIL EXTRA Part No.194368-5
New technical machine for cladding industry with aluminium sheeting
Precision and accuracy from 118mm 6-tooth blade
Guide rail available for precise cutting of aluminium sandwich panel materials
