| คุณสมบัติ | |
| มอเตอร์ | 3 KW-4P ,380V/50HZ/3phases |
| ความเร็วในการตัด | 12 รอบ/นาที |
| ขนาด | 81x76x86 ซม. |
| เหล็ก 45 kg/mm2 , เหล็กกลมSR24 (39 kg/mm2) | ตัดเหล็กสูงสุดขนาด 6-42 mm |
| เหล็ก 65 kg/mm2 , เหล็กข้ออ้อยSD50 (63 kg/mm2) | ตัดเหล็กสูงสุดขนาด 6-36 mm |
| น้ำหนักสุทธิ (kg) | 320 |

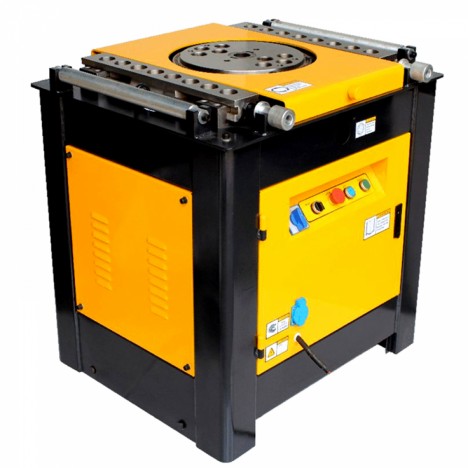

เครื่องตัดเหล็กแบบ Manual GW42D-1 (Rebar Bender) กำลังไฟ 380V
-MAIN FEATURE:
MOTOR TYPE: Automatic BRAKE MOTOR
GEAR BOX: CAST STEEL INSIDE GEAR: C45 STEEL
GEAR SHAFT: C45 STEEL WORKING DISK: C45 STEEL
STOP GAUGE: C45 STEEL PILE HEAD: CR 40 STEEL
EXTERNAL CASE: Q235
--PRODUCT DESCRIPTION
• GW42D adopts the FULLY ENCLOSED GEAR BOX separated from the working disk for NO DISTORTIONS even under the condition of heavy loads and NO OIL LEAKING while lifting the machine.
• GEAR, GEAR SHAFT, WORKING DISK, STOP GAUGE, PILE HEAD and PILE HEADS are made of high quality ALLOY STEEL with proper HEAT TREATMENT (quenching /tempering/high frequency), and 3mm thick external case to ensure high performances also under heavy loads and LONG WORKING LIFE.
•DUST PROOF BRAKE MOTOR and TWO LIMIT-SWITCH to ensure the accuracy of the bending angle also after stopping and restarting.
• INSERT-PIN TYPE disk and MOVABLE SADDLES for a precise adjusting of the bending angle.
• CE Certification (2006/42/EC-2006/95/EC)
Worry-saving:
The main components last for 10 years, and main wear parts can last for 3-year, which almost cost you nothing for maintenance.
Time-Saving:
The international advanced structure ensures the fastest bending speed.
---TECHNICAL DATA:
| BENDING CAPACITY | 6-42 mm (ob ≤450N/mm2) | 6-36 mm (ob ≤650N/mm2) | ||
| OPERATION | Automatic | Manual | ||
| TYPE OF MOTOR | YEJ 100L2-4 (Brake motor) | Y100L2-4 | ||
| MOTOR POWER | 3 KW-4P | 3 KW-4P | ||
| MOTOR ROTATION SPEED | 1420 R/min | 1420 R/min | ||
| SPEED OF WORKING DISK | 12 R/min | 12 R/min | ||
| NOISE VALUE (1m away) | ≤80dB(A) | ≤80dB(A) | ||
| WEIGHT | 374 Kg. | 320 Kg. | ||
| DIMENSIONS (L*W*H) | 810*760*860 mm | 810*760*860 mm | ||
| UNIT PRICE USD | ||||
| CERTIFICATION |
|
|||
