| คุณสมบัติ | |
| INPUT POWER | 208/230/1/60 |
| RATED OUTPUT | 208: 130A/17V/30% 230: 130A/20V/30% |
| INPUT CURRENT | 20A |
| OUTPUT RANGE | 30-180A |
| CORED WIRE SIZE RANGE | .030-.045 in. |
| WIRE FEED SPEED RANGE | 50-500 ipm (1.3-12.7 m/min) |
| DIMENSIONS (H X W X D) | 14 in x 10.15 in x 18.6 in (357 mm x 258 mm x 472 mm) |
| NET WEIGHT | 25.4 kg. |
ครื่องเชื่อม LINCOLN ELECTRIC CO รุ่น K2698-1 (Easy Mig 180 Wire-Feed Welder)
อุปกรณ์ที่มาพร้อมกับเครื่อง
Gun
Magnum® 100L gun and 10 ft. (3.0 m) cable assembly with brass gun connection and 4-pin MS-Type connection for trigger control (K530-6)
.025 in (0.6 mm) and .035 in (0.9 mm) contact tips
Gasless nozzle for Innershield® welding (KH726)
Gas nozzle for MIG welding (KH725)
Spindle adapter for 8 in. (203 mm) diameter spools (KH720)
Shielding Gas Apparatus
Harris® 3000290 Gas Regulator (S25805) and 52 in. (1.3 m) hose (S19303) for use with Ar/CO2 or CO2 gases. For use with CO2 shielding gas, order a Lincoln Electric S19298 CO2 shielding gas bottle adapter.
Welding Wire
Sample spool of .025 in. (0.6 mm) diameter SuperArc® L-56® premium MIG wire
Sample spool of .035 in. (0.9 mm) diameter Innershield® NR®-211-MP flux-cored wire
Other
Work clamp and 10 ft. (3.0 m) cable
Learn-To-Weld DVD
208/230 Volt AC Input Compact Wire Welder
Get it done with the Easy-MIG® for farm, light fabrication, auto or home projects! If you have access to 208/230 volt input power, you can weld on thicker material.
Simple two knob control makes it easy to tackle thin steel, stainless or aluminum sheet metal with MIG or thicker steel with flux-cored welding. Compare the precise drive, rugged construction and full list of standard accessories. . .
Lincoln Electric Easy-MIG® 180 is an excellent choice!

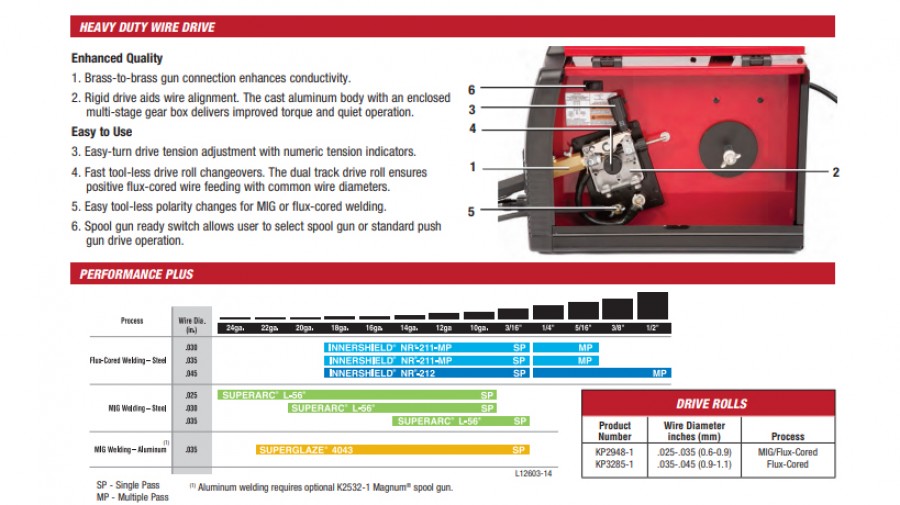

Heavy Duty Wire Drive
Fully adjustable drive system reduces the chance of wire tangling and crushing.
Brass-to-brass gun connection enhances conductivity.
Durable cast aluminum gear box delivers added drive torque and quiet operation.
Easy-turn numeric drive tension indicator identifies optimized ranges for different wire diameters.
Capable Performance
Forgiving arc makes dialing in your application easy.
Smooth arc starts with minimal spatter.
Wide 30-180 amp welding output range.
MIG weld 24 gauge up to 3/16 in. (4.8 mm) sheet metal in a single pass. Weld up to 1/2 in. (12.7 mm) steel using self-shielded Lincoln Electric Innershield® (FCAW-S) wires.
