| คุณสมบัติ | |
| แรงดึง (Ib) | 9500 |
| แรงม้า DC12V | 5 HP |
| ขนาดสลิง มม.*ม. | 8.7*30 |
| ความเร็ว no load ม./นาทั | 19 |
| Circuit Breaker | 190 A |
รอกกว้าน D/C ใช้กับรถ 4WD COME UP รุ่น DS2-9.5 กำลังไฟ 12V
(Seal Gen2 9.5)
รอก 4-Wheel รอกกว้านสำหรับรถ OFF-ROAD (ไฟ DC)
12V DC severe duty winch rated at 9,500 lb pulling meets or exceeds your expectations.
Heavy duty series wound motor equipped with thermal switch alters when motor over-heating.

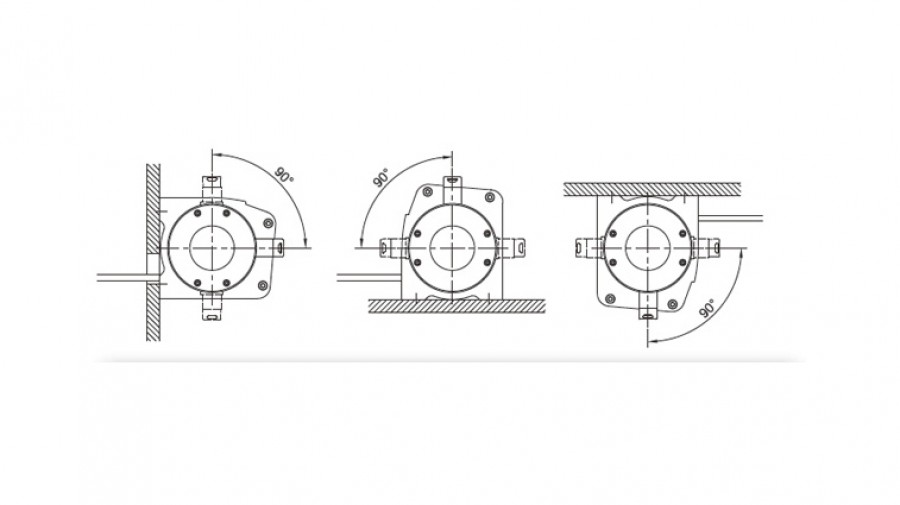

16 equally positioned pin holes with a stainless steel ergonomic T-handle make it possible to reposition in 22.5 degree increments.
Water-proof remote control with thermometric LED indicator w/5 m cord
Tough aluminum die cast housings withstand strength of 2.0 x rated load of winch
The U.S. Germany, U.K. France, etc patented mechanical cone brake outside the drum expedites heat dispersion. The greater the load on the rope, the greater amount of braking is generated by the mechanism.
Meet SAE J706, CE Machinery Directive 2006/42/EC and CE Electromagnetic Compatibility Directive 2004/108/EC.
Part number: PN 295950
Rated line pull: 4,309 kg / 9,500 lb single line
Motor: 3,730 w / 5.0 hp 12V series wound
Gear ratio: 3-stage planetary 159:1
Clutch (freespooling): Rotating ring gear
Brake (outside the drum): Automatic, full load CBS (Cone Brake Structure)
Winch construction: Aluminum die cast housings with steel drum

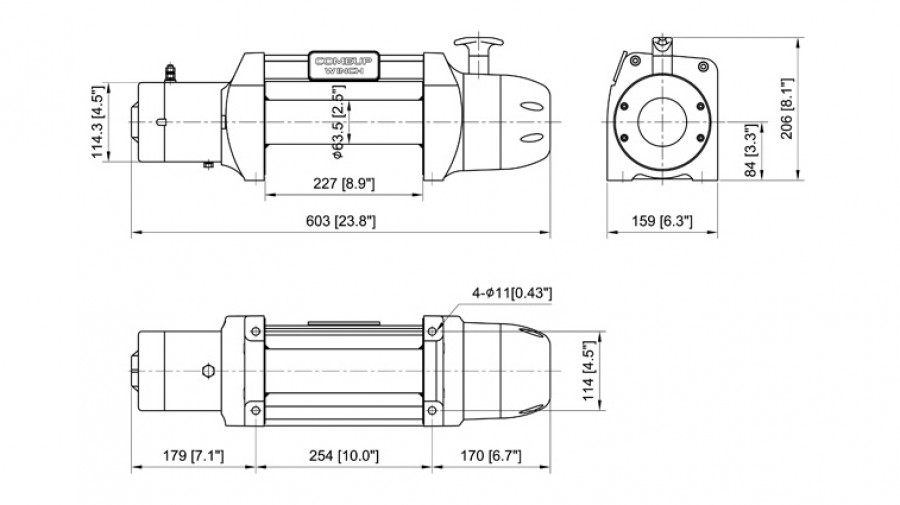

Drum size: 63.5 x 227 x 273 mm (2.5” x 8.9” x 10.7")
Control: Waterproof remote with thermometric indicator LED w/ 5 m (17') cord
Rope type: Galvanized aircraft A7 x 19 wire rope
Rope size: 8.7 mm x 30.5 m (11/32” x 100’)
Mounting bolts pattern: 254 x 114 mm (10” x 4.5”)
Mounting : Foot forward or foot down mounting workable
Finish : Matte black powder-coatedWinch weight (including rope) : 36.2 kg / 79.8 lb
Gross weight : 51.3 kg / 113 lb
Box dimension, (L x D x H) : 682 x 209 x 430 mm (26.9" x 8.2" x 16.9")
