| คุณสมบัติ | |
| ขนาด | 6000 |
| แรงม้า DC12V | 3.2 HP |
| ขนาดสลิง มม.*ม. | 8*24.4 |
| ความเร็ว no load ม./นาที | 8 |
| Circuit Breaker | - |

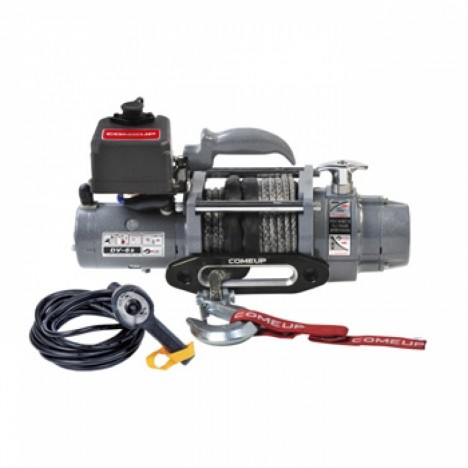

รอกกว้าน D/C ใช้กับรถ 4WD COME UP รุ่น DV6S (สลิงเชือก)
Heavy duty series wound motor delivers superior torque output and faster line speed.
Lightweight and compact design is easy for front of vehicle.
Submersible sealed contactor handles high amps and allows higher duty cycle.
12 strand construction synthetic rope, coated to improve abrasion resistance and to protect from the ingress of dirt and grit.
The U.S Germany, U.K. France, etc patented automatic, full load cone brake structure outside the drum holds the full load without slippage.
Meet international standards of CE Machinery Directive 2006/42/EC and CE Electromagnetic Compatibility Directive 2004/108/EC.
2” rear receiver and quick connector wiring kits for rear of vehicle as option.
Specification/Part Numbers
Part number: PN 295980
Rated line pull: 4,309 kg / 9,500 lb single line
Motor: 3,730 w / 5.0 hp 12V series wound
Gear ratio : 3-stage planetary 159:1
Clutch (freespooling): Rotating ring gear
Brake (outside the drum): Automatic, full load CBS (Cone Brake Structure)
Winch construction: Aluminum die cast housings with steel drum
Drum size: 63.5 x 227 x 273 mm (2.5” x 8.9” x 10.7")
Control: Waterproof remote with thermometric indicator LED w/ 5 m (17') cord
Rope type: Galvanized aircraft A7 x 19 wire rope
Rope size: 8.7 mm x 30.5 m (11/32” x 100’)
Mounting bolts pattern: 254 x 114 mm (10” x 4.5”)
Mounting : Foot forward or foot down mounting workable
Finish : Matte black powder-coated
Winch weight (including rope) : 38.5 kg / 85 lb
Gross weight : 52.6 kg / 116 lb
Box dimension, (L x D x H) : 682 x 209 x 430 mm (26.9" x 8.2" x 16.9")
