รอกกว้าน D/C ใช้กับรถ ATV COME UP CUB3

     รอกกว้าน D/C ใช้กับรถ ATV COME UP รุ่น CUB3

3,000 lb (1,361 kg) line pull

Power in and power out

Winch drum centred avoids the interference of rope and provides streamlined appearance

Mechanical load holding and dynamic brake for 100% braking

High efficiency, low amp draw and sealed permanent magnet motor

Full metal 3 stage planetary gear train for greater pulling force

Sliding pin and ring gear clutch for rapid wire rope payout

Weather sealed contactor gives better water proof and lower amp. draw

E/e marked as of EU Directive 97/24/EC. EEC Type - Approval Number: e4*97/24*97/24/8/IX*0036*01

Specification/Part Numbers

Part number:  PN 123561

Rated line pull: 1,361 kg (3,000 lb) single line

Motor:  800 w / 1.0 hp 12V permanent magnet

Gear train: 3-stage planetary 138.5:1

Clutch (freespooling): Sliding pin and ring gear

Brake: Mechanical & dynamic

Winch construction: Aluminum die cast housings and drum

Drum size: 55 x 75 mm (2.2” x 3”)

Control: Handlebar rocker switch

Rope type: Galvanized aircraft A7 x 19

Rope size: 4.8 mm x 15.2 m (3/16” x 50’)

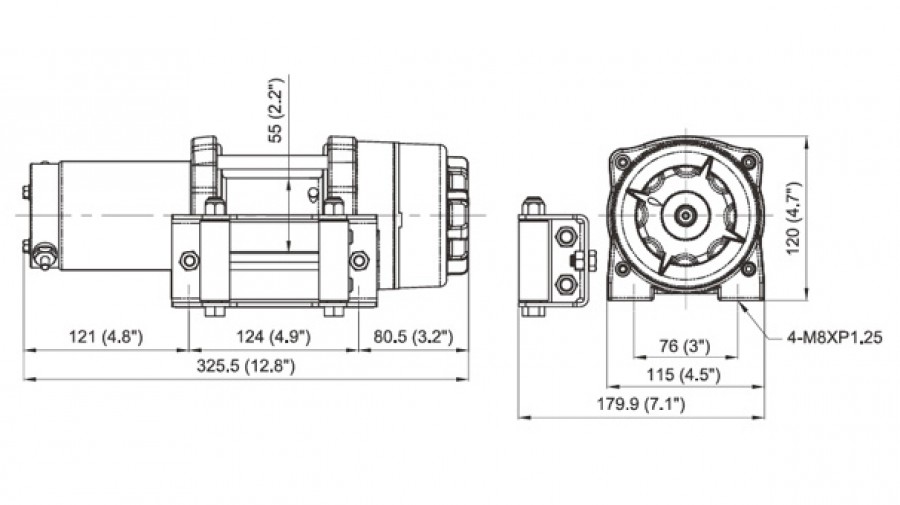

Mounting bolts pattern: 76 x 124 mm (3” x 4.9”)

Winch weight (including rope) : 8.2 kg / 18 lb

Gross weight : 12.5 kg / 27.6 lb

Box dimension, (L x D x H) : 349 x 331 x 144 mm (13.7" x 13" x 5.7")
