รอกกว้าน D/C ใช้กับรถ 4WD COME UP DS9.5RSI (Seal Gen2 9.5rsi) (สลิงเชือก) กำลัง

      รอกกว้าน D/C ใช้กับรถ 4WD COME UP รุ่น DS9.5RSI (สลิงเชือก) กำลังไฟ 12V

Seal Gen2 9.5rsi

12V DC severe duty winch rated at 9,500 lb pulling meets or exceeds your expectations.

Heavy duty series wound motor equipped with thermal protection switch alters.

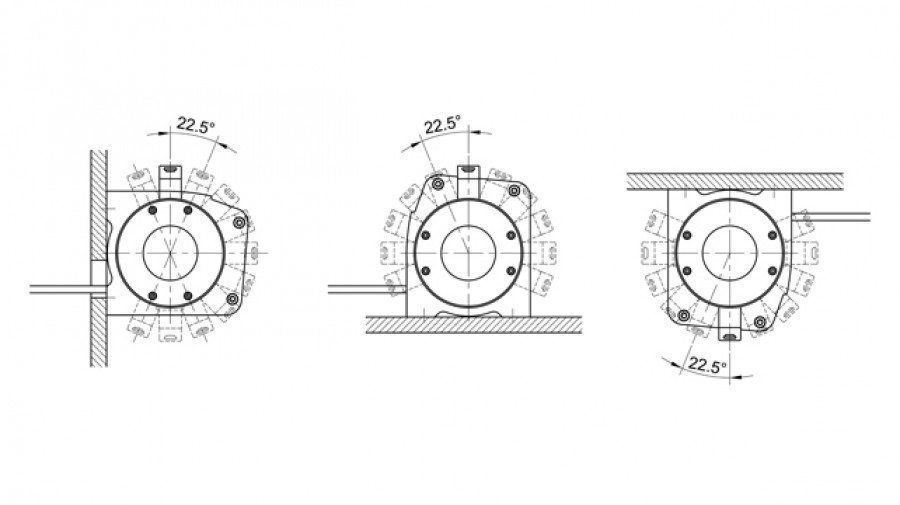

16 equally positioned pin holes with a stainless steel ergonomic T-handle make it possible to reposition in 22.5 degree increments.

Both built-in digital signal two ways wireless remote control and wired water-proof remote control

Cutout switch activates or deactivates the winch.

A 12 strand construction synthetic rope coated to improve abrasion and has no water absorption.

Tough aluminum die cast housings withstand strength of 2.0 x rated load of winch

The U.S. Germany, U.K. France, etc patented mechanical cone brake outside the drum expedites heat dispersion and also makes the winch ideal for use with synthetic rope.

Meet SAE J706, CE Machinery Directive 2006/42/EC and CE Electromagnetic Compatibility Directive 2004/108/EC

Specification/Part Numbers

Part number: PN 295860

Rated line pull: 4,309 kg / 9,500 lb single line

Motor: 3,730 w / 5.0 hp 12V series wound

Gear ratio: 3-stage planetary 159:1

Clutch (freespooling): Rotating ring gear

Brake (outside the drum): Automatic, full load CBS (Cone Brake Structure)

Winch construction: Aluminum die cast housings with steel drum

Drum size: 63.5 x 227 x 273 mm (2.5” x 8.9” x 10.7")

Control: Both built-in digital signal two ways wireless remote control and waterproof remote with thermometric indicator LED w/ 5 m (17') cord

Rope type: Synthetic rope

Rope size: 10 mm x 30.5 m (3/8” x 100’)

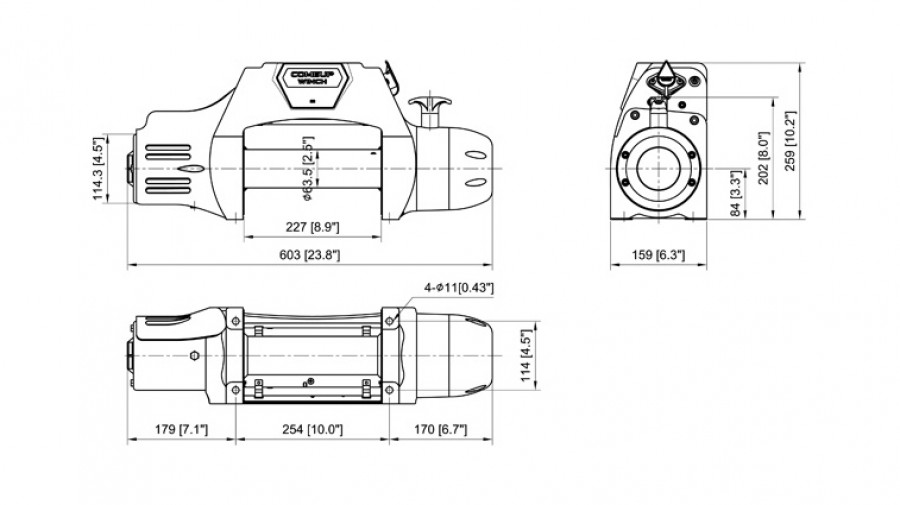

Mounting bolts pattern: 254 x 114 mm (10” x 4.5”)

Mounting : Foot forward or foot down mounting workable

Finish : Matte black powder-coated

Winch weight (including rope) : 36.2 kg / 79.8 lb

Gross weight : 40.8 kg / 90 lb

Box dimension, (L x D x H) : 682 x 209 x 430 mm (26.9" x 8.2" x 16.9")
